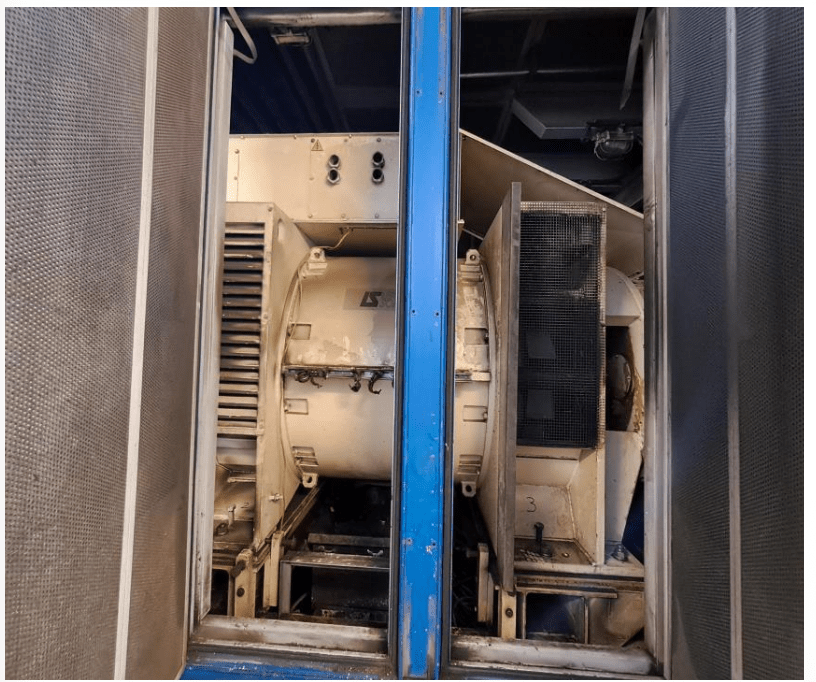

Front view of a large blower unit, similar to those integrated in the AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power system from a cogeneration plant; enclosed in metal framing with visible vents, motor, and protective grilles between two blue panels—well-suited as a spare part for heavy-duty industrial applications.
A Centrax GT Package 501-KB7, designed for water injection electrical power from a cogeneration plant, sits inside a blue enclosure. The large industrial gasturbine features yellow and metallic components, pipes, and cables visible through an open access panel. A technical document is posted on the left door—a typical arrangement in heavy industry settings.
Certainly! Here’s a rewritten version of your sentence, incorporating the provided product data: A metal nameplate on the AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power unit from a cogeneration plant, often employed in heavy industry applications, presents technical specifications such as model, power output, frequency, voltage, current, rotational speed, excitation method, and weight. This nameplate features both French and English descriptions along with details about the manufacturer.
Here’s a rewritten version of the sentence using your provided product data: The AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power panel from a cogeneration plant features an electrical control panel with a warning sign, emergency stop button, fire alarm, and various displays and switches located behind a glass section. Designed for heavy-industry applications such as LM2500 or LM6000 systems, this panel also includes ventilation grilles and clearly marked labels for operator safety and convenience.
Several AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power units from a cogeneration plant are lined up outdoors next to a concrete wall. A green tarp covers the top of the equipment, and a beige building can be seen in the background. Warning signs are attached to the units.
Close-up of a metal industrial gas turbine engine, specifically the AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power from a cogeneration plant, with a visible nameplate showing manufacturer details. Bolts and hoses are attached, with some dirt and wear on the surface—common signs of operation in heavy industry settings or while awaiting use as a spare part.
A close-up of industrial machinery inside a facility, featuring metal pipes, cables, and a large cylindrical component—possibly part of the AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power system from a cogeneration plant—partially framed by a blue structure.
A close-up of industrial machinery inside a facility, featuring metal pipes, cables, and a large cylindrical component—possibly part of the AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power system from a cogeneration plant—partially framed by a blue structure.
Eight labeled close-up images from a borescope inspection of turbine engine components in the AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power unit—from a cogeneration plant—showing internal parts such as compressor stages, plugs, nozzles, and fuel nozzles. Brief notes indicate no major issues, offering valuable insight for heavy industry maintenance professionals.
Information plate for the AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power unit from a cogeneration plant, commonly used in heavy industry applications. The plate displays technical details including model, power output, operational speeds, weights, and company contact information. It is attached to a beige-colored machine surface.
Front view of a large blower unit, similar to those integrated in the AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power system from a cogeneration plant; enclosed in metal framing with visible vents, motor, and protective grilles between two blue panels—well-suited as a spare part for heavy-duty industrial applications.
A Centrax GT Package 501-KB7, designed for water injection electrical power from a cogeneration plant, sits inside a blue enclosure. The large industrial gasturbine features yellow and metallic components, pipes, and cables visible through an open access panel. A technical document is posted on the left door—a typical arrangement in heavy industry settings.
Certainly! Here’s a rewritten version of your sentence, incorporating the provided product data: A metal nameplate on the AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power unit from a cogeneration plant, often employed in heavy industry applications, presents technical specifications such as model, power output, frequency, voltage, current, rotational speed, excitation method, and weight. This nameplate features both French and English descriptions along with details about the manufacturer.
Here’s a rewritten version of the sentence using your provided product data: The AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power panel from a cogeneration plant features an electrical control panel with a warning sign, emergency stop button, fire alarm, and various displays and switches located behind a glass section. Designed for heavy-industry applications such as LM2500 or LM6000 systems, this panel also includes ventilation grilles and clearly marked labels for operator safety and convenience.
Several AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power units from a cogeneration plant are lined up outdoors next to a concrete wall. A green tarp covers the top of the equipment, and a beige building can be seen in the background. Warning signs are attached to the units.
Close-up of a metal industrial gas turbine engine, specifically the AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power from a cogeneration plant, with a visible nameplate showing manufacturer details. Bolts and hoses are attached, with some dirt and wear on the surface—common signs of operation in heavy industry settings or while awaiting use as a spare part.

AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power FROM A COGENERATION PLANT

SKU: PG-GT-022 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , Brand: ,

Description

AVAILABLE CENTRAX GT PACKAGE 501-KB7 Water Injection Electrical Power FROM A COGENERATION PLANT

CENTRAX GT PACKAGE:

Site: Cogeneration plant

Year of manufacturing:12/2001

Manufacturer: Turbomeca

Package Hours: 128341

MAIN EQUIPMENT INSTALLED

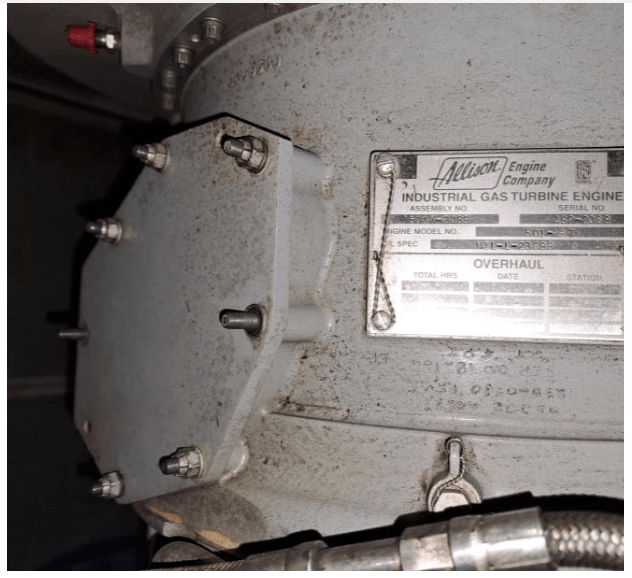

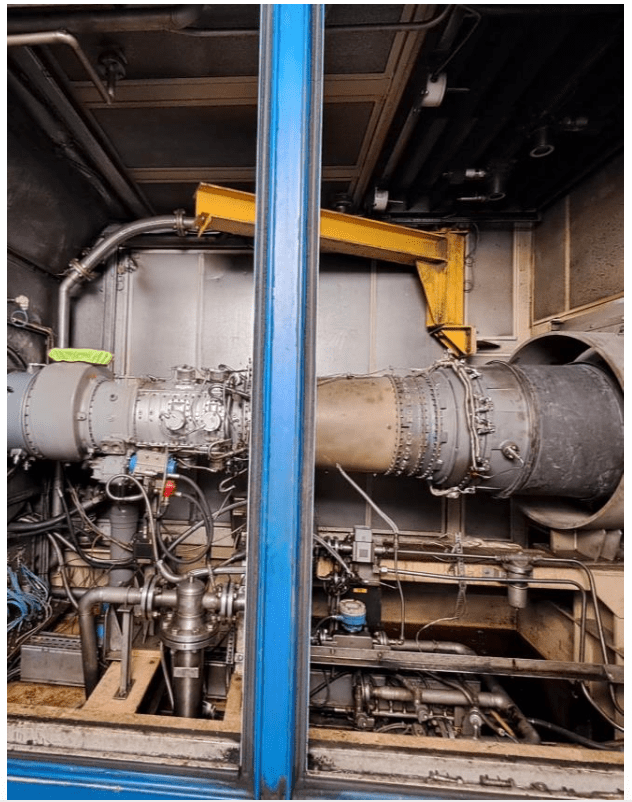

GAS TURBINE

Model: 501-KB7 Water Injection Electrical Power

Serial Number: ASP 2089

Year of manufacturing: Not available

TSN: Unknown

TSO: 36469 Hrs

Reason for removal: High lighthouse pressure

Condition: Unserviceable

Control Panel TCLG: retrofitted in 2013

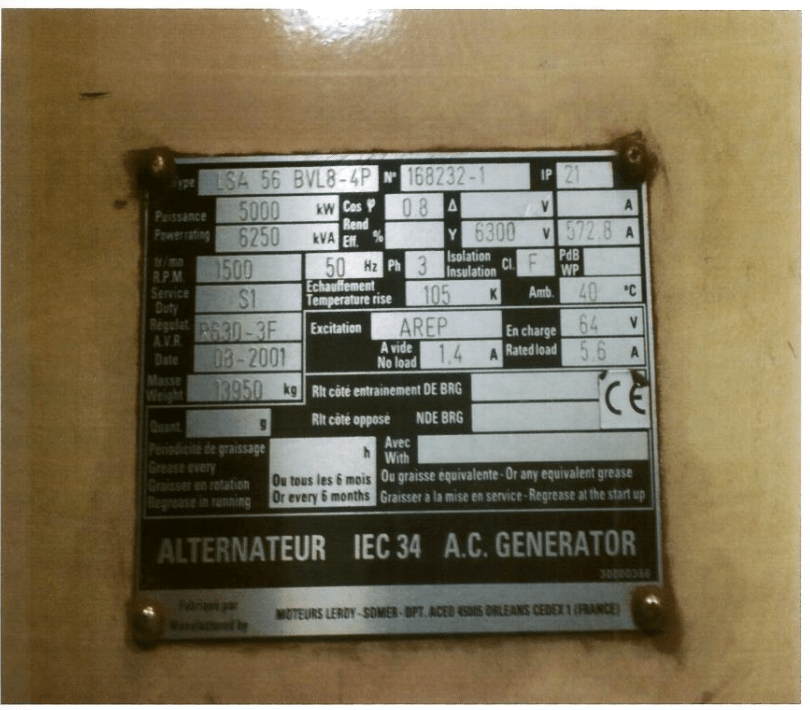

ELECTRICAL GENERATOR

Manufacturer: Leroy Somer

Model: LSA56 BVL8-4P

Generator Serial Number:168232-1

Year of manufacturing:

Condition: Serviceable

Latest Major Overhaul: 2015

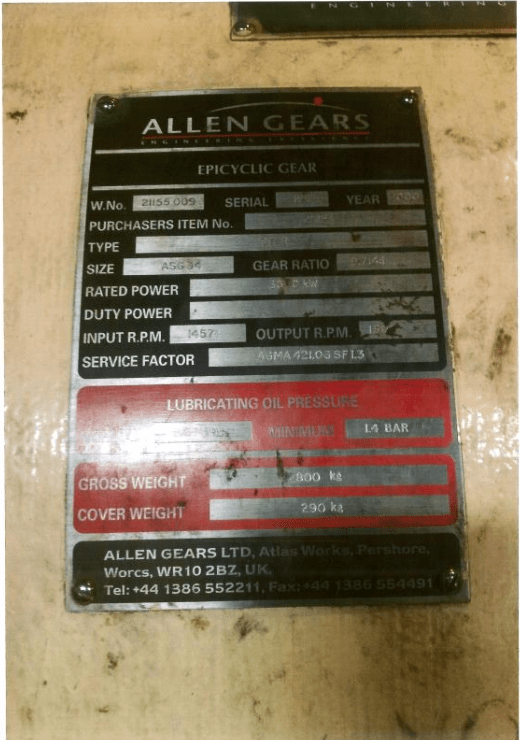

REDUCTION GEAR BOX MODEL

Manufacturer: Allen Gear

Model: ASG34

Serial Number:

Year of manufacturing: 2000

Service factor: 1.3

In speed: 14571 rpm

Out speed:1500 rpm

Max Power: 6500 kW

Scope of sale:

Genset Package including Gas Turbine, Reduction gearbox, generator, GT control panel

❑ Offer for single assets could be addressed, priority criteria will be assigned for offers covering the full scope

of sale;

❑ Sales Condition: « As is where is»

❑ Shipping/ Transportation cost: in charge of buyer

❑ Availability: Immediate

❑ Asset «on site inspection» can be arranged in case of request;

GAS TURBINE Maintenance History / Technical

Documents available upon request

❑ Gas turbine maintenance hystory performed by Centrax;

❑ Shop visit report, Site inspection report;

❑ Centrax Control System Upgrade Certificates;

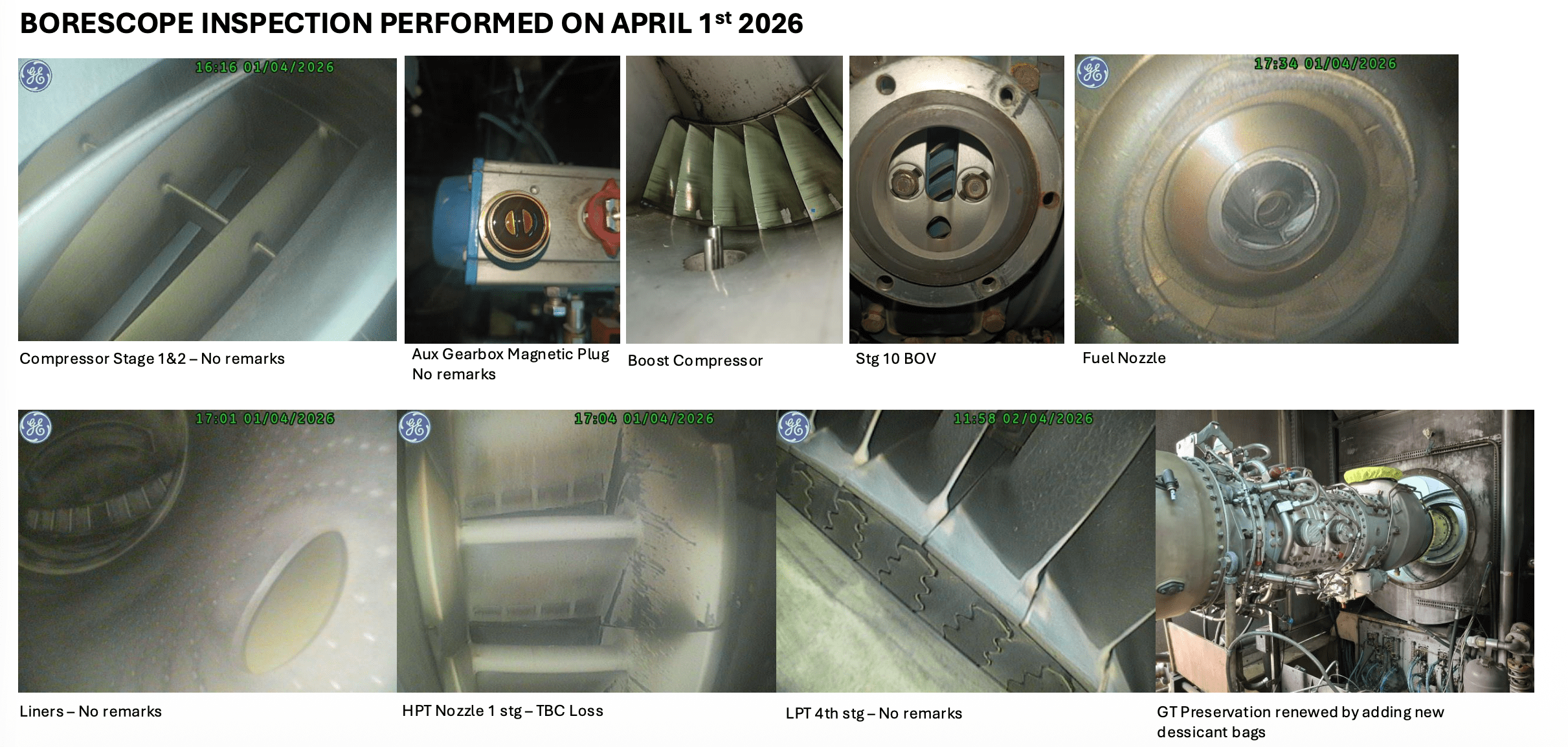

❑ Latest Borescope Inspection Report (April 1st 2026)

GENERATOR Maintenance History / Technical

Documents available upon request

❑ Generator yearly inspection performed, latest

Major Overhaul performed in 2015;

❑ Shop visit report, Site inspection report;

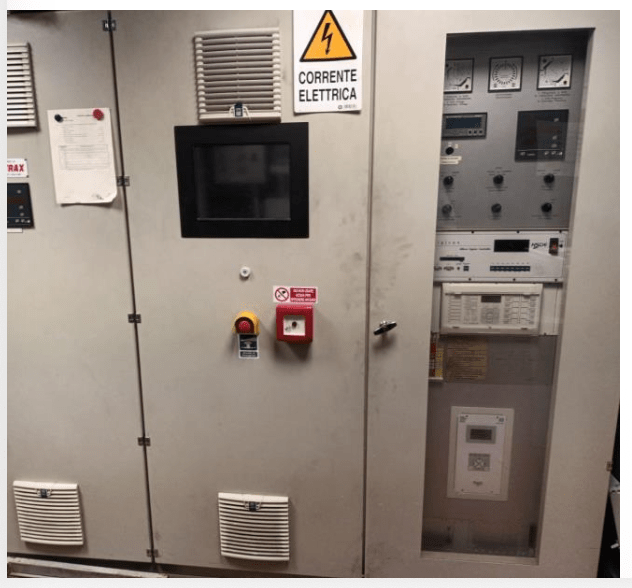

CONTROL PANEL TG

❑ Retrofit performed in 2013 ;

❑ Available upon request Quality Dossier Index and relevant

retrofit certification

Additional information
